How to Convert Programs to the 1.1 AWT API

For example, any 1.0 applet should successfully compile under 1.1. And whether you use the old (1.0) class files or recompile and use new (1.1) class files, the 1.0 applet will work in 1.1-based browsers. Also, we believe that the new (1.1) class files will work in old (1.0-based) browsers, as long as you make no changes to the applet's source. But if you change the applet to use any 1.1 feature, the applet won't run in browsers such as Netscape 3.0 that haven't been updated to the 1.1 API.

So why should you update your programs to the 1.1 AWT API? Three reasons:

• The 1.1 version of AWT has some new features you might want to use.
• The new architecture enables faster, more robust implementations of the AWT, which means that your updated program might work better.
• Support for the old API will eventually be phased out.

The rest of this document explains how the AWT has changed and how to convert your program. It then provides an example of converting a program to 1.1.

How the AWT Has Changed

• The architecture has been improved to make large-scale GUI development more feasible and to add basic functionality that was missing.

  Architectural support has been added for event handling by non-components ("delegation"), data transfer (such as cut-copy-paste), desktop color schemes (to improve consistency of appearance), mouseless operation, and component-specific cursors. Not all of the features associated with these architecture improvements have been completely implemented. For example, although the data transfer architecture makes drag-and-drop possible, drag-and-drop isn't implemented in 1.1. JDK1.1 - AWT Enhancements has details on exactly what is implemented in the final 1.1 release.

• Method names, arguments, and functionality have been made consistent.

  These changes make it possible for programs such as GUI builders and JavaBeans-using programs to query components to determine the components' properties. They also make it easier for programmers to learn and use the AWT API.

• Miscellaneous quality improvements have been made and new features added.

  For example, image and graphics functionality has improved, and the PopupMenu and ScrollPane classes have been added. The PopupMenu class makes it possible to have a menu that is not attached to a menu bar. The ScrollPane class makes implementing scrolling areas easy, as well as increasing the speed of scrolling.

You can find more information on event-handling changes later in this document. See JDK1.1 - AWT Enhancements for more complete information about how the AWT has changed.

How to Convert Your Program

• Converting to the new names. Much of this conversion can be done automatically.
• Converting to the new event scheme.

General Instructions

1. First, save a copy of the original program -- both the Java source code and the Java bytecodes. You'll need the copy until all the Java runtime systems the program might execute in have been converted to 1.1. For example, licensees such as Netscape and Microsoft might take a few months after the final JDK 1.1 release to update their own products to include 1.1. For this reason, you might want to delay releasing a 1.1-based applet to the web (or provide both 1.0 and 1.1 versions) until you think that the applet's intended users have upgraded to the new release. Here's an example of saving a copy of a program on a UNIX system:

   % cp MyClass.java MyClass.java.orig
   % cp MyClass.class MyClass.class.orig


2. Convert your source code -- automatically if possible -- so that it uses the new names for methods whose names have changed.

   We provide a sed script that performs much of the conversion automatically. (For details on what the script converts, see Simple Name Changes.) The script is designed for the UNIX sed command. If you're developing on a PC, you might be able to run the script using a product such as MKS Toolkit, which provides PC versions of UNIX tools. Here's how to use the sed script at a shell prompt on a UNIX system:

   % updateAWT MyClass.java > tmp.java


   Check the changes to make sure nothing obviously bad happened. For example, on a UNIX system, you might execute the following command:

   % diff MyClass.java tmp.java


   And then after confirming that the changes look OK:

   % mv tmp.java MyClass.java


3. Try to compile the program under 1.1. Make sure you're using a 1.1 compiler. Here's an example of compiling on a UNIX system:

   % javac MyClass.java


   You might see compilation errors or warnings. The most common ones warn you that your program uses a deprecated method or uses a method that couldn't be found.

   If your program calls any deprecated methods -- pre-1.1 methods whose use we discourage for some reason -- the compiler displays a warning. For example:

   % javac MyClass.java
   Note: MyClass.java uses a deprecated API.  Recompile with "-deprecation"
   for details.
   1 warning
   %


   Note: The 1.1.1 Java compiler warns you when a program overrides a deprecated method, but the 1.1 compiler does not. The 1.1 compiler warns you only when a program calls a deprecated method. For example, the 1.1 compiler won't usually warn you if a program overrides the action method, since most implementations of action don't call the superclass's implementation.

   To get information about each source file's use of deprecated methods, use the -deprecation option of the Java compiler. For example:

   % javac -deprecation MyClass.java
   MyClass.java:18: Note: The method boolean handleEvent(java.awt.Event) in
   class java.awt.Component has been deprecated, and class MyClass overrides
   it.
       public boolean handleEvent(Event event) {
                      ^
   MyClass.java:26: Note: The method boolean handleEvent(java.awt.Event) in
   class java.awt.Component has been deprecated.
           return super.handleEvent(event);
                                   ^
   Note: MyClass.java uses a deprecated API.  Please consult the
   documentation for a better alternative.
   2 warnings


   You can consult Deprecated Methods in the 1.1 AWT for information about alternatives to each deprecated method. (It refers you back to this document for information on event-related methods.)

   If you get a compilation error saying that a method couldn't be found, then the sed script might have incorrectly changed the name of a method. See Simple Name Changes for help in correcting the problem.

4. Make remaining changes by hand until the program compiles without warnings. Most of the changes that you're likely to make by hand involve converting to the 1.1 event model. This document gives you an overview of the 1.1 event model and tells you how to convert event-handling code.

5. Test your program by executing it.

How to Convert Event-Handling Code

In 1.1, event handling is no longer restricted to objects in the component containment hierarchy, and the handleEvent method is no longer the center of event handling, Instead, objects of any type can register as event listeners. Event listeners receive notification only about the types of events they've registered their interest in. Never again will you have to create a Component subclass just to handle events.

When upgrading to the 1.1 release, the simplest way to convert event-handling code is to leave it in the same class, making that class a listener for that type of event.

Another possibility is to centralize event-handling code in one or more non-Component listeners. This approach lets you separate the GUI of your program from implementation details, It requires that you modify your existing code so that the listeners can get whatever state information they require from the components. This approach can be worth your while if you're trying to keep your program's architecture clean.

A third possibility, which we don't recommend unless you're already extending a Component, is to override one of the processXxx methods. This and the other event-handling approaches are discussed in the design document Delegation Event Model.

We recommend that you do not mix the 1.0 event model with the 1.1 event model in the same program. The results would be unpredictable and might be difficult to debug.

Making a Component a Listener

Here are the steps to follow when converting a 1.0 component into a listener:

• Change the source file so that it imports the java.awt.event package:

  import java.awt.event.*


• Figure out which components generate each event type. The table at the end of this document can help you know what to look for. For example, if you're converting event code that's in an action method, the table at the end of this document tells you to look for Button, List, MenuItem, TextField, Checkbox, and Choice objects.

• Change the class declaration so that the class implements the appropriate listener interfaces (as listed by the table at the end of this document). For example, if you're trying to handle an action event generated by a Button, the table tells you to implement the ActionListener interface.

  public class MyClass extends SomeComponent
               implements ActionListener


  Alternative: Instead of implementing an interface, you can declare an inner class that extends an event adapter class. Inner classes are useful when you need to implement only one method of an interface, but the interface contains many other methods. See Using Inner Classes for Event Handling for more information.

• Determine where the components that generate the events are created. Just after the code that creates each one, register this as the appropriate type of listener. For example:

  newComponentObject.addActionListener(this);


  Alternative: If you use an inner class to handle the events, register an instance of that inner class instead. See Using Inner Classes for Event Handling for more information.

• Create empty implementations of all the methods in the listener interfaces your class must implement. Copy the event-handling code into the appropriate methods. For example, ActionListener has just one method, actionPerformed. So as a shortcut way of creating the new method and copying the event-handling code to it, you can simply change the signature of an action method from this:

  public boolean action(Event event, Object arg) {


  to this:

  public void actionPerformed(ActionEvent event) {


  Alternative: If you use an inner class to handle the events, you don't need to create empty implementations of methods. See Using Inner Classes for Event Handling for more information.

• Modify the event-handling code in these ways:
  • Delete all return statements.
  • Change references to event.target to be event.getSource().
  • Delete any code that unnecessarily tests for which component the event came from. (Now that events are forwarded only if the generating component has a listener, you don't have to worry about receiving events from an unwanted component.)
  • Perform any other modifications required to make the program compile cleanly and execute correctly.

Using Inner Classes for Event Handling

Implementing an event-handling inner class is a variation on making a class implement an event-listener interface. As before, you determine which interface corresponds to the events your class needs to handle. But instead of implementing the interface, you create an inner class that extends the adapter corresponding to the interface. For example, instead of implementing WindowListener, you can implement an inner class that extends WindowAdapter. Then you simply create an instance of your inner class and register it as the appropriate kind of listener -- for example, with the addWindowListener method. Here is an example:

public class MyClass ... {
    ...
    //Where the window is created:
        newWindow.addWindowListener(new MyInnerClass());
    ...
    class MyInnerClass extends WindowAdapter {
        public void windowClosing(WindowEvent event) {
            if (inAnApplet) {
                dispose();
            } else {
                System.exit(0);
            }
        }
    }
    ...
}

Example: Converting DialogWindow

Below is the 1.0 version of DialogWindow (here's a link to the source code), running as an applet with the help of AppletButton:

---

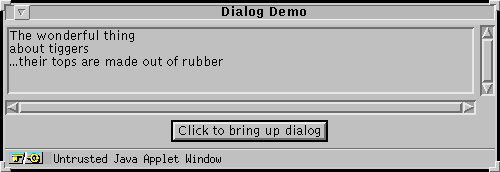

Since you can't run the applet, here's a snapshot of the window (Frame) the button brings up:

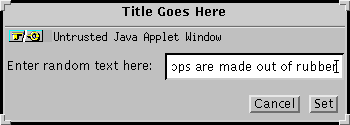

And here's a snapshot of the dialog for the window:

---

Step 1: Make Copies

% mkdir 1.0example
% mv DialogWindow.class 1.0example
% cp DialogWindow.java 1.0example

Step 2: Convert Automatically

% updateAWT DialogWindow.java > tmp.java
% diff DialogWindow.java tmp.java
33c33
<         dialog.show();
---
>         dialog.setVisible(true);
38c38
<         textArea.appendText(text + "\n");
---
>         textArea.append(text + "\n");
47c47
<         window.show();
---
>         window.setVisible(true);
87c87
<         hide();
---
>         setVisible(false);
% mv tmp.java DialogWindow.java

Step 3: Compile

% which javac
/usr/local/java/jdk1.1.1/solaris/bin/javac
% javac DialogWindow.java
Note: DialogWindow.java uses a deprecated API.  Recompile with
"-deprecation" for details.
1 warning
%

% javac -deprecation DialogWindow.java
DialogWindow.java:18: Note: The method boolean handleEvent(java.awt.Event) in
class java.awt.Component has been deprecated, and class DialogWindow overrides
it.
    public boolean handleEvent(Event event) {
                   ^
DialogWindow.java:26: Note: The method boolean handleEvent(java.awt.Event) in
class java.awt.Component has been deprecated.
        return super.handleEvent(event);
                                ^
DialogWindow.java:29: Note: The method boolean action(java.awt.Event,
java.lang.Object) in class java.awt.Component has been deprecated, and class
DialogWindow overrides it.
    public boolean action(Event event, Object arg) {
                   ^
DialogWindow.java:81: Note: The method boolean action(java.awt.Event,
java.lang.Object) in class java.awt.Component has been deprecated, and class
SimpleDialog overrides it.
    public boolean action(Event event, Object arg) {
                   ^
Note: DialogWindow.java uses a deprecated API.  Please consult the
documentation for a better alternative.
5 warnings
%

Step 4: Make Changes by Hand

For the DialogWindow program, this step consists solely of converting the event-handling code, as described previously in Making a Component a Listener. Searching for "Event" in DialogWindow.java lets you find the event-handling code in the two classes (DialogWindow and SimpleDialog) that comprise the program.

Here's an overview of event handling in the DialogWindow program:

• DialogWindow handles window destroy events for itself.
• DialogWindow handles action events for the components it contains. Upon closer inspection, we can see that it contains only one component that can generate action events: a Button.
• SimpleDialog handles action events for the components it contains. Upon closer inspection, we can see that it contains three components that can generate action events: two Buttons (Cancel and Set) and a TextField.
• Both DialogWindow and SimpleDialog contain non-event-handling code, so you can't eliminate them by moving their event-handling code elsewhere.

The current locations of the event-handling code make sense. Another way that might make sense is to have DialogWindow handle all events, since it is the controlling class in this application. Yet another possibility is to introduce a non-Component controlling class that handles all action events. To convert the DialogWindow program, we'll keep its event-handling code in the same components as before but make the components implement listener interfaces.

The following example gives the highlights of the event-related code in the converted DialogWindow program. Significant changes are in bold.

import java.awt.event.*;

public class DialogWindow extends Frame
			  implements WindowListener,
				     ActionListener {
    ...
    public DialogWindow() {
	...
        Button button = new Button("Click to bring up dialog");
	button.addActionListener(this);
	...
	addWindowListener(this);
    }

    public void windowClosed(WindowEvent event) {
    }

    public void windowDeiconified(WindowEvent event) {
    }

    public void windowIconified(WindowEvent event) {
    }

    public void windowActivated(WindowEvent event) {
    }

    public void windowDeactivated(WindowEvent event) {
    }

    public void windowOpened(WindowEvent event) {
    }

    public void windowClosing(WindowEvent event) {
        if (inAnApplet) {
            dispose();
        } else {
            System.exit(0);
        }
    }

    public void actionPerformed(ActionEvent event) {
        if (dialog == null) {
            dialog = new SimpleDialog(this, "A Simple Dialog");
        }
        dialog.setVisible();
    }
    ...
}

class SimpleDialog extends Dialog implements ActionListener {
    ...
    SimpleDialog(Frame dw, String title) {
	...
        field = new TextField(40);
	field.addActionListener(this);
	...
        Button b = new Button("Cancel");
	b.addActionListener(this);
        setButton = new Button("Set");
	setButton.addActionListener(this);
	...
    }

    public void actionPerformed(ActionEvent event) {
	Object source = event.getSource();
        if ( (source == setButton)
           | (source == field)) {
            parent.setText(field.getText());
        }
        field.selectAll();
        setVisible(false);
    }
}

import java.awt.event.*;

public class DialogWindow extends Frame
			  implements ActionListener {
    ...
    public DialogWindow() {
	...
        Button button = new Button("Click to bring up dialog");
	button.addActionListener(this);
	...
	addWindowListener(new DWAdapter());
    }

    class DWAdapter extends WindowAdapter {
        public void windowClosing(WindowEvent event) {
            if (inAnApplet) {
                dispose();
            } else {
                System.exit(0);
            }
        }
    }

    public void actionPerformed(ActionEvent event) {
        if (dialog == null) {
            dialog = new SimpleDialog(this, "A Simple Dialog");
        }
        dialog.setVisible(true);
    }
    ...
}

Step 5: Test

% java DialogWindow

Event Conversion Table

1.0		1.1
Event/Method	Generated By	Interface	Methods
ACTION_EVENT/action	Button, List, MenuItem, TextField	ActionListener	actionPerformed(ActionEvent)
	Checkbox, CheckboxMenuItem, Choice	ItemListener	itemStateChanged(ItemEvent)
WINDOW_DESTROY WINDOW_EXPOSE WINDOW_ICONIFY WINDOW_DEICONIFY	Dialog, Frame	WindowListener	windowClosing(WindowEvent) windowOpened(WindowEvent) windowIconified(WindowEvent) windowDeiconified(WindowEvent) windowClosed(WindowEvent) (no 1.0 equivalent) windowActivated(WindowEvent) (no 1.0 equivalent) windowDeactivated(WindowEvent) (no 1.0 equivalent)
WINDOW_MOVED	Dialog, Frame	ComponentListener	componentMoved(ComponentEvent) componentHidden(ComponentEvent) (no 1.0 equivalent) componentResized(ComponentEvent) (no 1.0 equivalent) componentShown(ComponentEvent) (no 1.0 equivalent)
SCROLL_LINE_UP SCROLL_LINE_DOWN SCROLL_PAGE_UP SCROLL_PAGE_DOWN SCROLL_ABSOLUTE SCROLL_BEGIN SCROLL_END	Scrollbar	AdjustmentListener (or use the new ScrollPane class)	adjustmentValueChanged(AdjustmentEvent)
LIST_SELECT LIST_DESELECT	Checkbox, CheckboxMenuItem, Choice, List	ItemListener	itemStateChanged(ItemEvent)
MOUSE_DRAG/mouseDrag MOUSE_MOVE/mouseMove	Canvas, Dialog, Frame, Panel, Window	MouseMotionListener	mouseDragged(MouseEvent) mouseMoved(MouseEvent)
MOUSE_DOWN/mouseDown MOUSE_UP/mouseUp MOUSE_ENTER/mouseEnter MOUSE_EXIT/mouseExit	Canvas, Dialog, Frame, Panel, Window	MouseListener	mousePressed(MouseEvent) mouseReleased(MouseEvent) mouseEntered(MouseEvent) mouseExited(MouseEvent) mouseClicked(MouseEvent) (no 1.0 equivalent)
KEY_PRESS/keyDown KEY_RELEASE/keyUp KEY_ACTION/keyDown KEY_ACTION_RELEASE/keyUp	Component	KeyListener	keyPressed(KeyEvent) keyReleased(KeyEvent) keyTyped(KeyEvent) (no 1.0 equivalent)
GOT_FOCUS/gotFocus LOST_FOCUS/lostFocus	Component	FocusListener	focusGained(FocusEvent) focusLost(FocusEvent)
No 1.0 equivalent.		ContainerListener	componentAdded(ContainerEvent) componentRemoved(ContainerEvent)
No 1.0 equivalent.		TextListener	textValueChanged(TextEvent)
